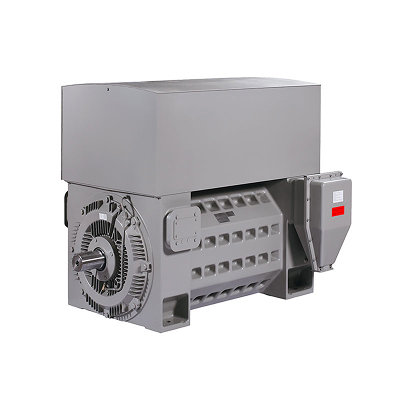

INNOMOTICS HV Series A-compact PLUS
INNOMOTICS HV Series A-compact PLUS
High voltage motors based on a modular cooling concept, with cast iron enclosure. Designed for high power pump, fan and compressor applications – especially for desalination plants, power generation and in the water/wastewater industry.
These motors are cost efficient as they focus on the essential issues – but at the same time set themselves apart as a result of their high quality, reliability and very compact design.
Your Advantages
- Cost-efficient
- Reliable and long service live
- High availability even under rough environment conditions
- Accurately fitting solutions for the individual application
- High reliability and low costs over the whole lifecycle
Features
- Focused on features essential for high-power pumps, fans and compressors
- Rugged design, low-wear materials and the well-proven MICALASTIC® insulation system
- Extremely compact design
- High-quality coating-systems
- Flexible regarding number of poles, voltage and cooling concept
Technical Data
| Power range: | 0.25 – 7.35 MW |
| Shaft height: | 315 – 630 mm |
| Rated speeds: | 750 – 3600 rpm |
| No. of poles: | 2 – 16 |
| Rated voltages: | up to 11 kV |
| Protection: | IP23, IP24W, IP55 |
| Cooling type: | IC 611, IC 616, IC 81 W, IC 86 W, IC 01 |
| Explosion protection: | Zone 2: Ex ec |
